JBL’s Bass Pro Hub Subwoofer Rattles Your Rear View Mirror.

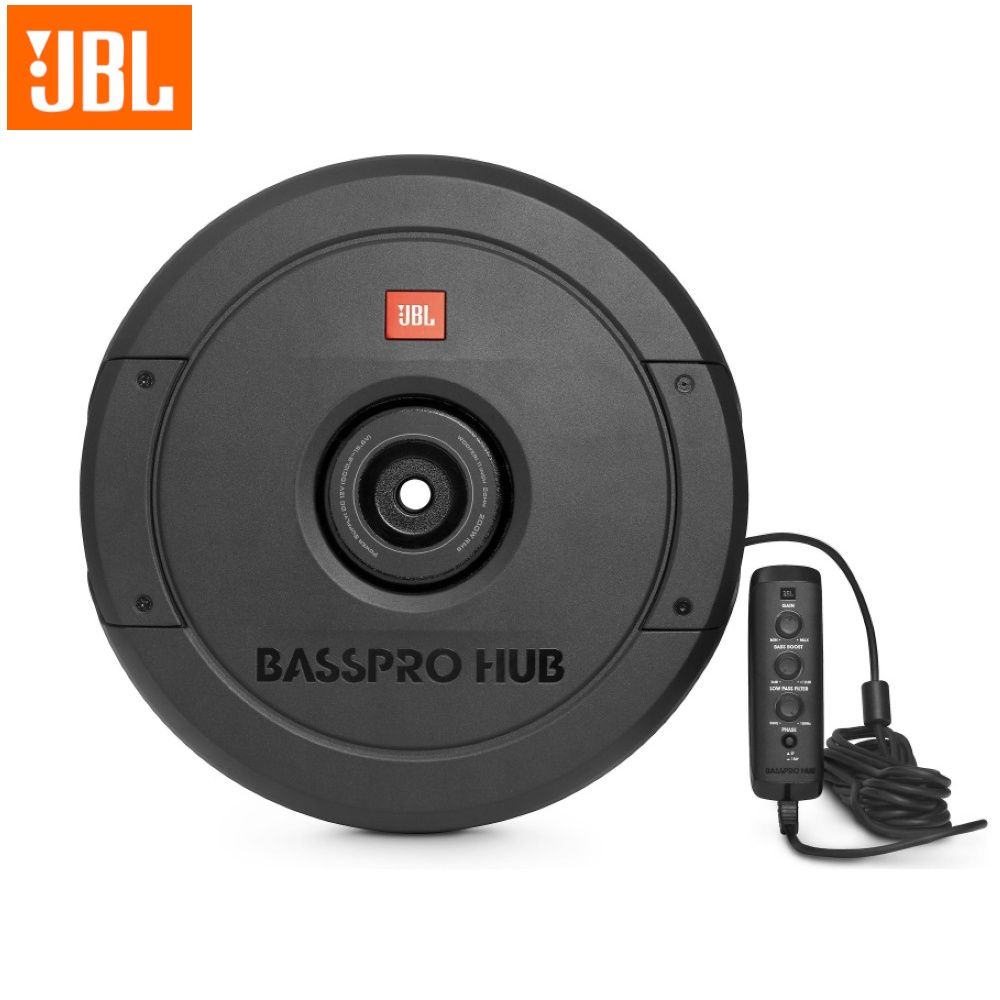

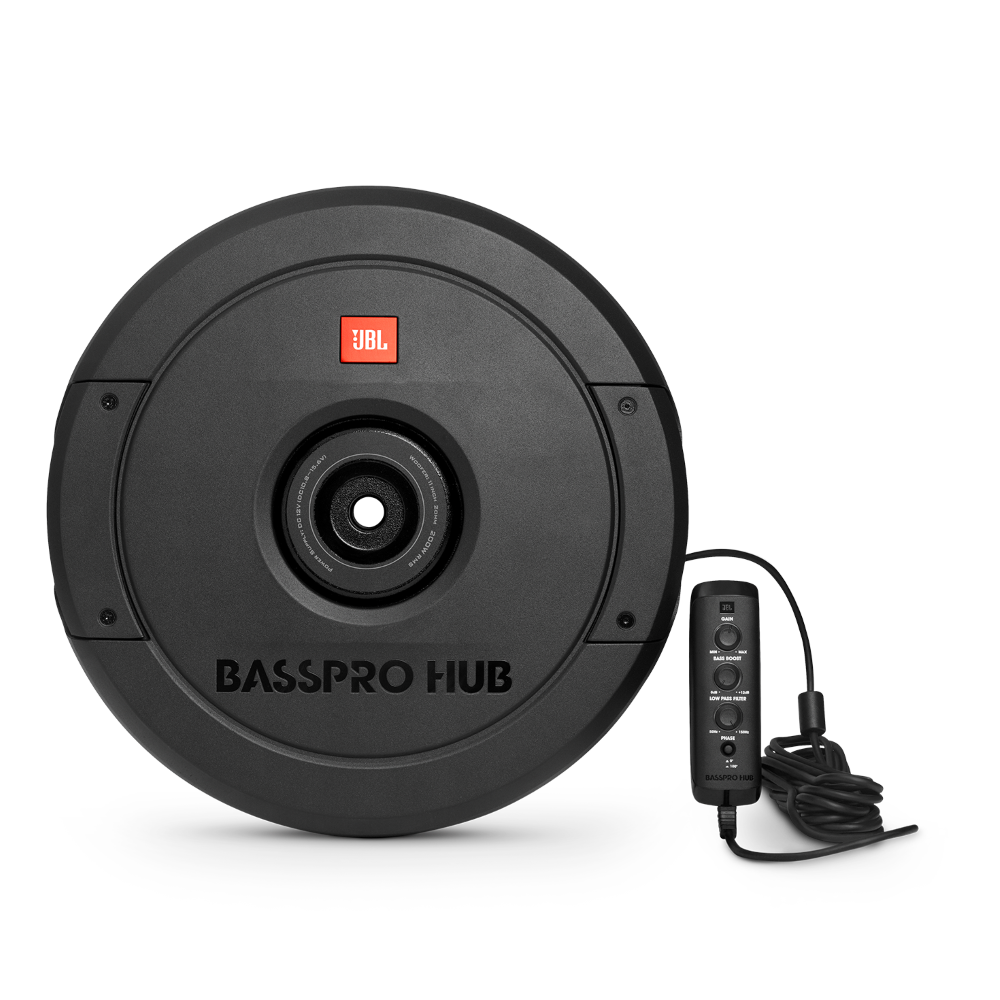

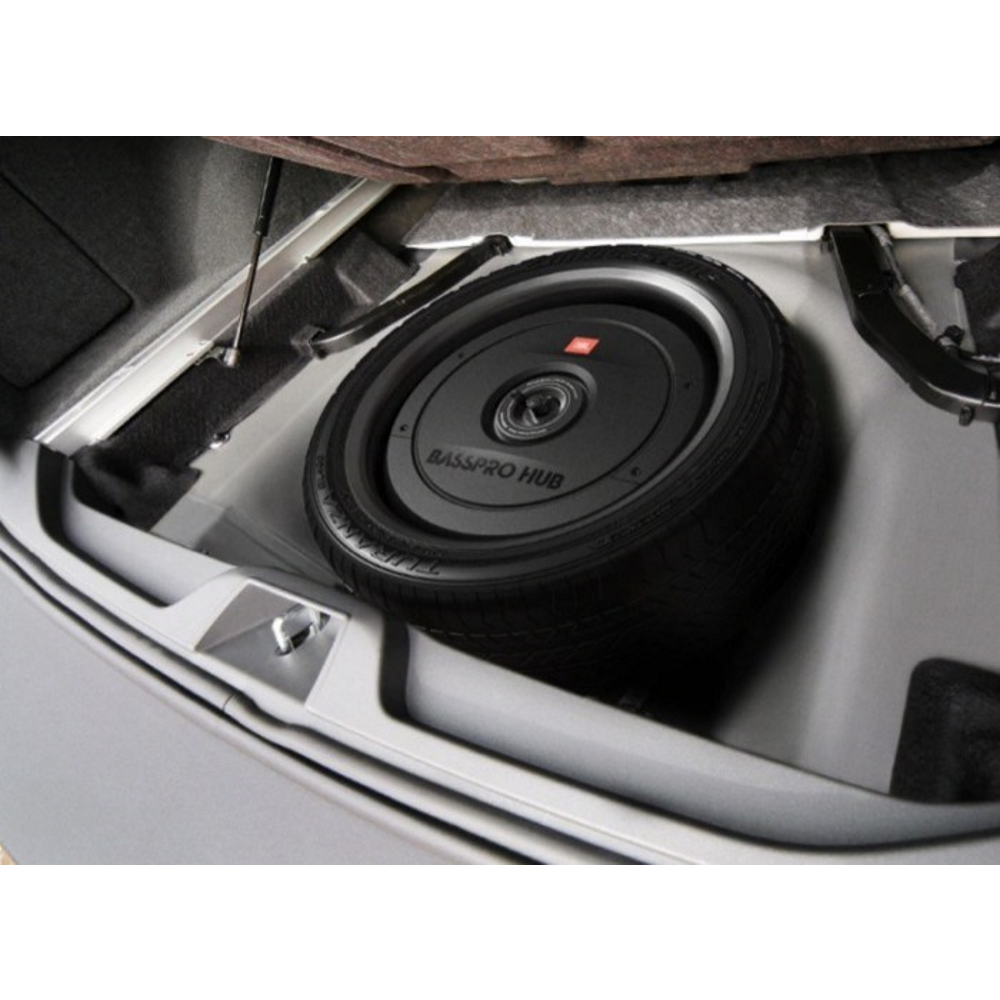

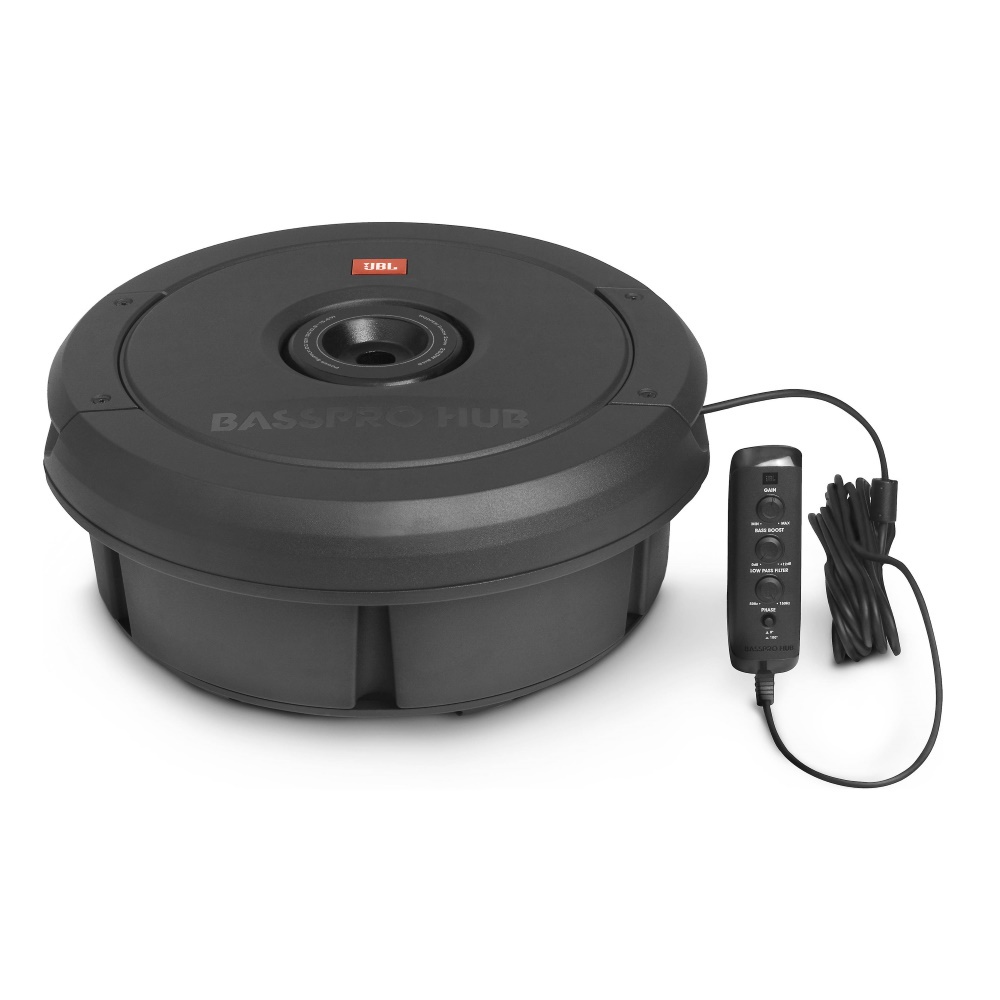

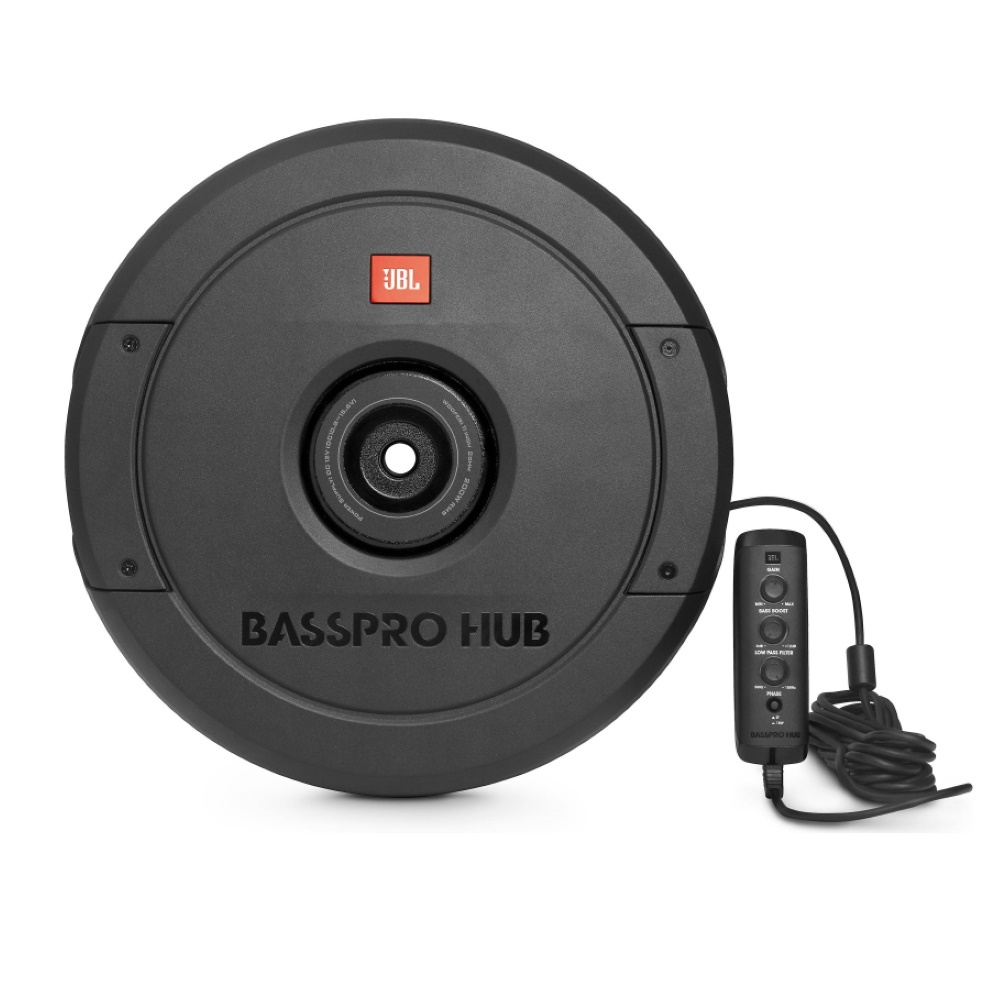

The new JBL Bass Pro Hub subwoofer delivers show & shine performance without crowding your passengers or sacrificing cargo area. This all-in-one powered subwoofer system fits into the hub of your spare tire for a super easy installation and out of sight sound solution. The built-in Class D amplifier delivers 200W RMS and is designed to work with the Bass Pro Hub subwoofer and enclosure as a system. The 11″ (279mm) feather-light fiberglass woofer cone with rubber surround delivers the signature kick and punch of JBL bass. And with over temperature protection (OTP) and over current protection (OCP) you can count on reliability at peak volume levels. The included remote control enables adjustment of crossover point, gain, phase—and a bass boost of 12dB when you’re in the mood and on the move. Whether you’re cruising or competing, the JBL Bass Pro leaves the competition behind without missing a beat.
General Specifications
- powered 11″ subwoofer enclosure

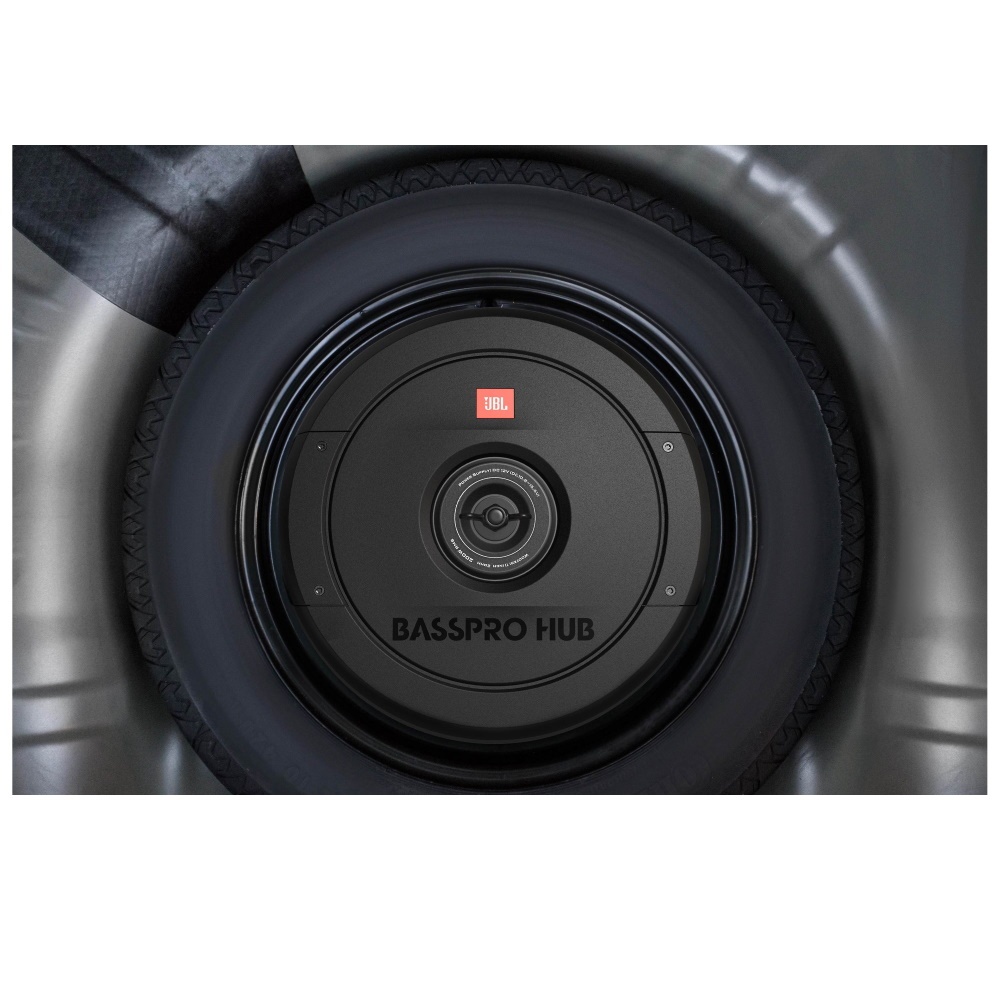

- mounts to hub of spare tire
- spare tire must be turned upside down
- compatible with spare tires mounted inside vehicle with removable spare tire post
- fiberglass cone with rubber surround
- Class D amplifier (200 watts RMS)

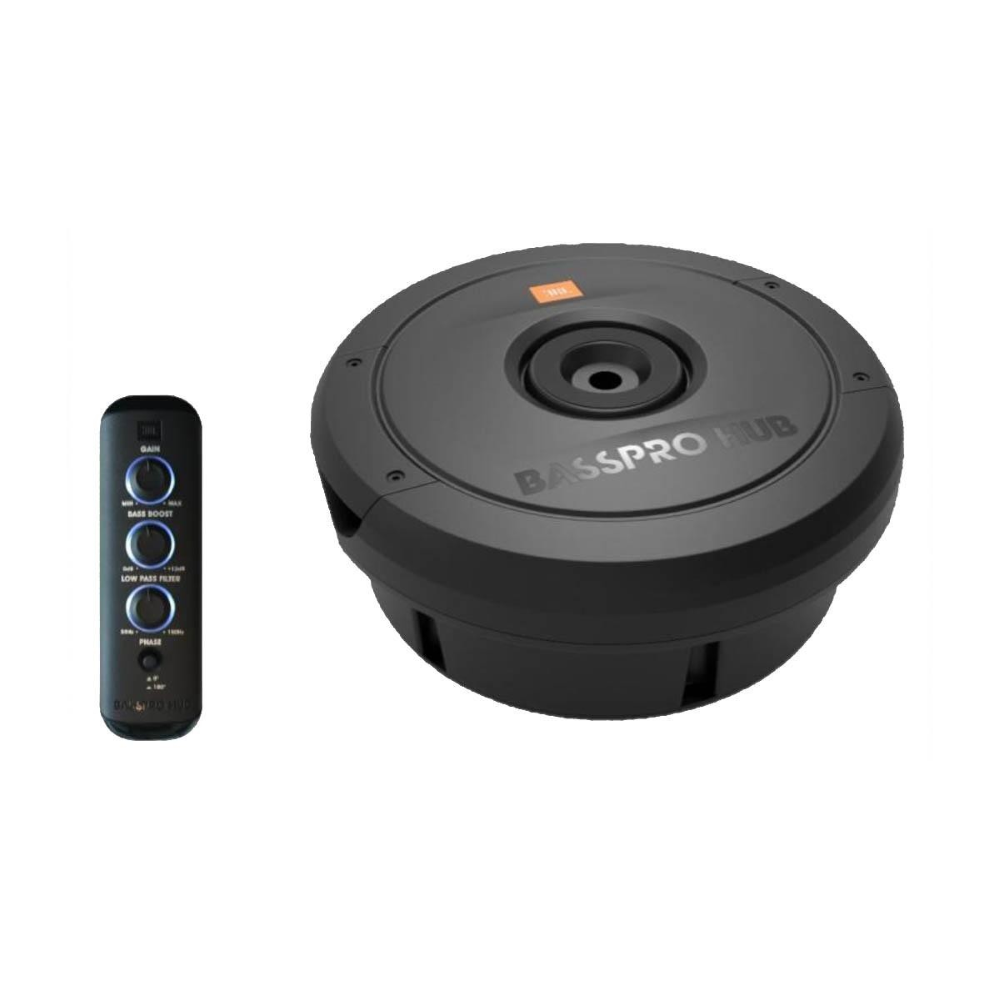

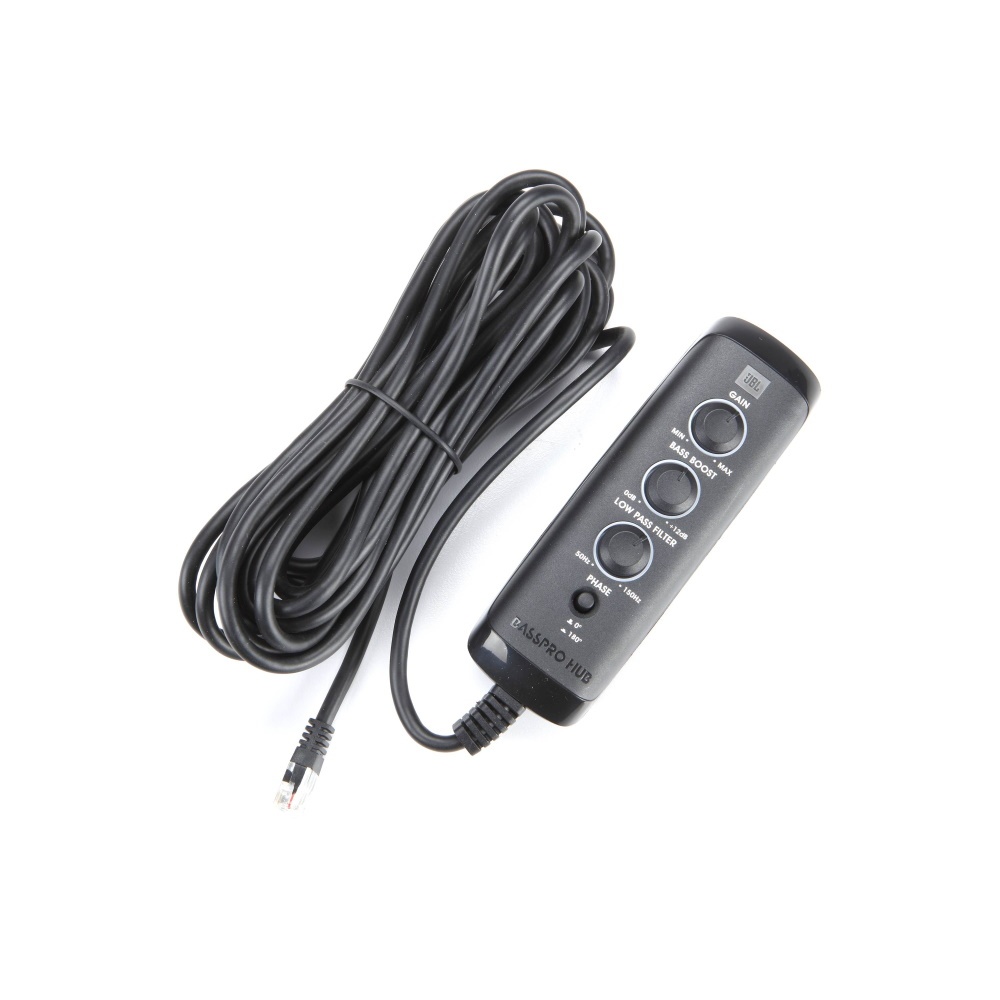

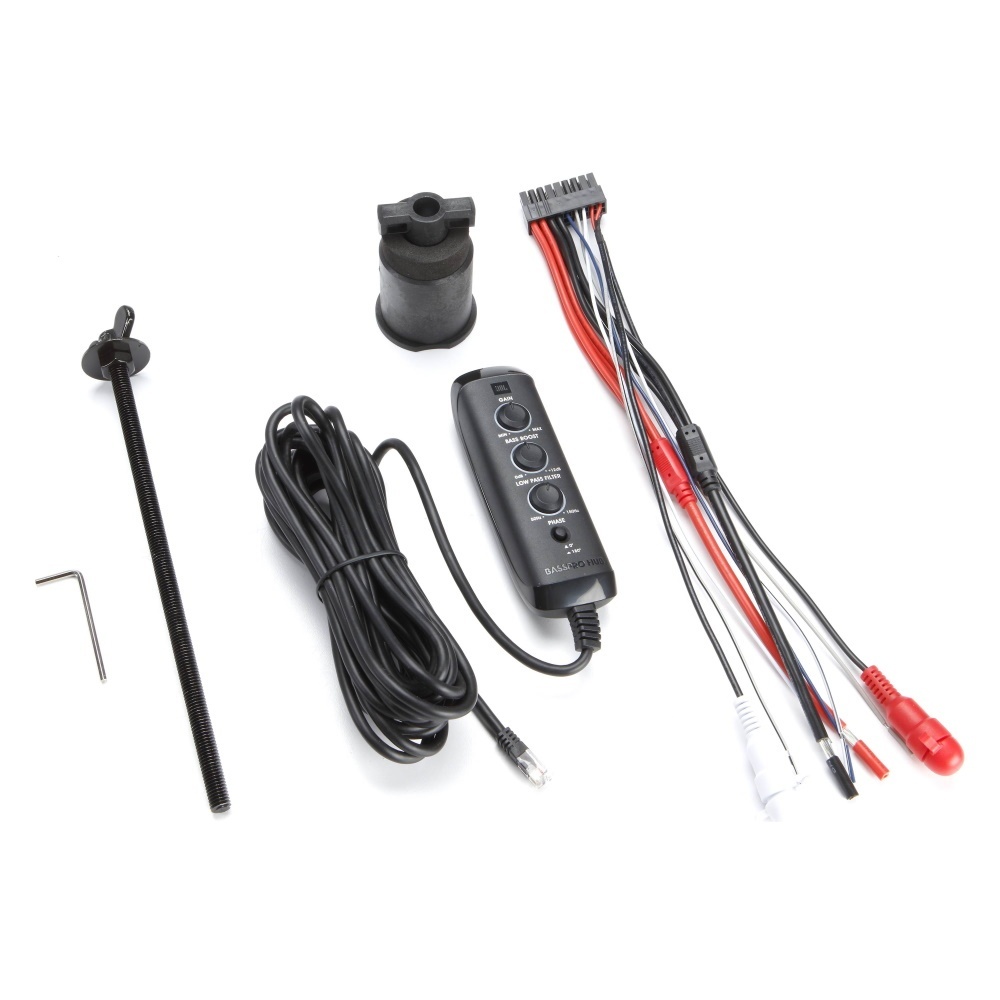

- wired remote included (controls level, crossover frequency, phase, and bass EQ)
- variable low-pass crossover (50-150 Hz, 24dB/octave)
- phase switch (0°, 180°)
- bass boost (0-12 dB at 50 Hz)
- frequency response: 30-150 Hz
- dimensions: 6-7/16″H x 14-3/16″D
- fuse: 30A
- sensitivity: 84 dB
Speaker Specifications
- Resistance : 2+ 15% Ω
- Frequency Range : F0 – 300Hz
- SPL : 84 + 3dB
- Rated Power : 200 W
- Max. Power : 300 W
- Material of cone : Rubber Edge Fiber Glass Cone
