Sensor & Imaging
- Sensor Type: 1/2.9″ Progressive Scan CMOS (GC3003 × 2)
- Video Resolution: 4MP (2MP + 2MP)
- Video Compression: H.265
- Lens: 4mm + 4mm (dual fixed-focus lenses)
- Viewing Angle: 80°
- Night Vision: Full Color and Infrared
- Minimum Illumination: 0.00001 Lux
- IR/White LED Distance: Up to 30 m (Effective 10 m)
Functions & Detection
- Detection Type: PIR + Radar Dual Induction
- Detection Distance: Up to 12 m
- Detection Angle: 120°
- Alarm: Dual confirmation and instant mobile notification
- Auto Tracking: Supported
- Two-Way Audio: 3W Speaker + Built-in Microphone (Pickup range up to 20 m)
Movement & Control
- Pan: 355° (Horizontal)
- Tilt: 90° (Vertical)
- Rotation Speed: 55°/s (Horizontal), 40°/s (Vertical)
Connectivity
- Network: 4G – Band 1/3/5/8/38/39/40/41
- WiFi: Not Supported (4G Model)
- App: V380 Pro (Live View, Playback, Mobile Notifications)
Storage & Power
- Local Storage: TF Card (Max 128 GB)

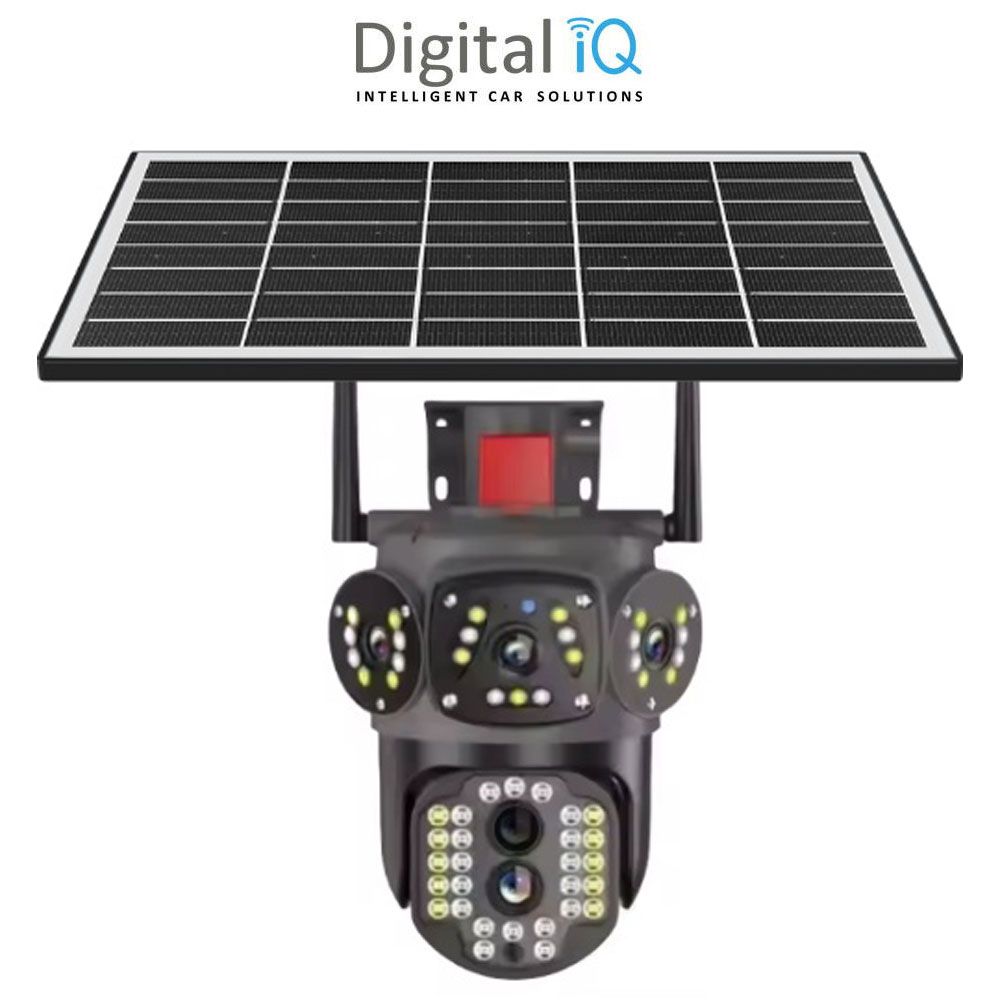

- Power Supply: Solar Panel + Built-in 3.7V 18650 Battery
- Solar Panel Power: 7.5W
- Battery Capacity: 8000 mAh
- Power Consumption: Daytime 350–400 mA / Nighttime 500–550 mA / Standby 5 mA
Operating Conditions
- Waterproof Rating: IP66 (Indoor/Outdoor Use)
- Working Temperature: -30°C ~ +50°C
- Humidity: 0%–80% RH
Usage Note
Please fully charge the camera via USB cable before first use.
